Grill Ceiling
Product Details

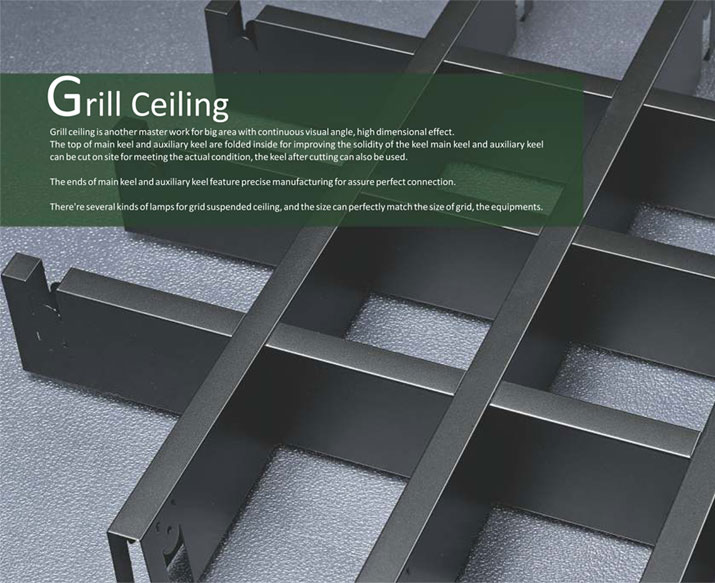

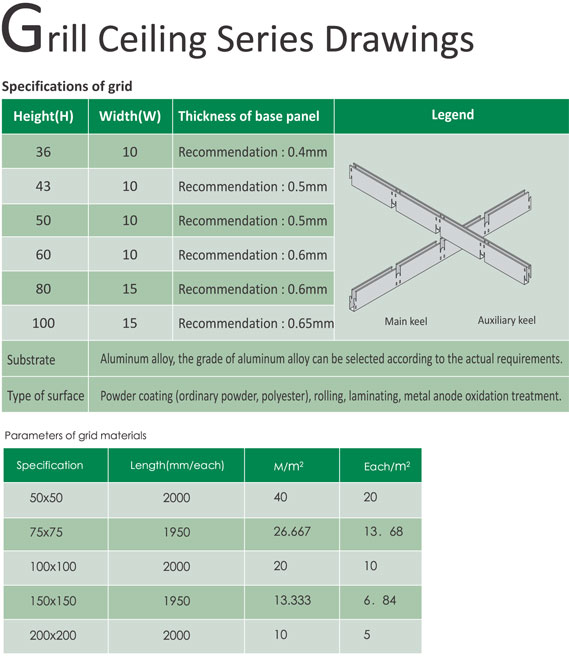

Providing and Fixing Citizen Grill ceiling consisting of grill main runner and cross runner fixed perpendicularly to form a cell of size 50mmx50mm/75mmx 75mm / 150mmx 150mm /200mmx200mm . Web height of the main runner and cross runner can be 36mm/43mm/50mm/60mm/80mm/100mm and width can be 10mm/15mm . cross runner and main runner are mad up of aluminium alloy 3105/ 3003 in thickness 0.5mm .
Testing | |
Frame & smoke spread Light Reflectance (White) Stability under humidity IAQ Friendly VOCs Fiber Content Moisture Resistance Life Cycle |
Class A (ASTM E84) LRI Yes Yes No No Excellent Excellent |

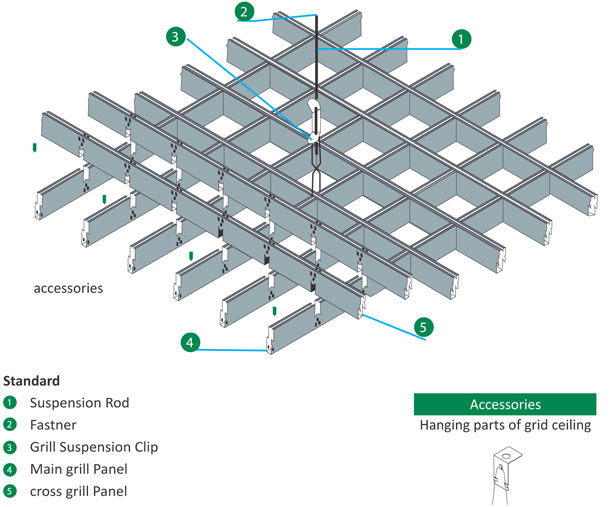

1. Installing the sideline in the same height
2. putting the main grill panel and cross grill panel on the floor .
3. Suspension rod should be installed at a distance of 1.2m centre to centre.
4. lifting the assembelled grill ceiling to the suspension rod by Grill suspension clip.
5. Wearing gloves when installing panel , if figure print or stain remain on the panel , please remove it with warm water and detergent , then dry it.
