Hook on ceiling
Product Details

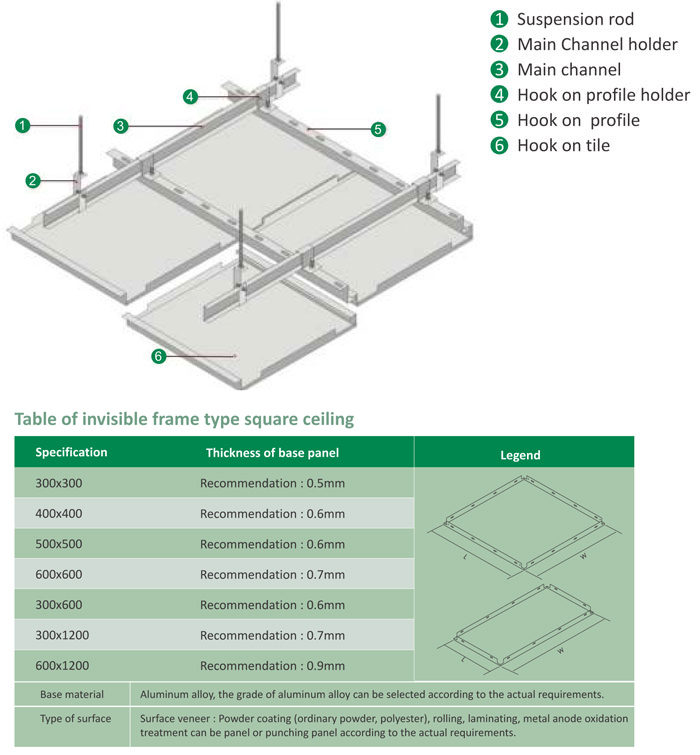

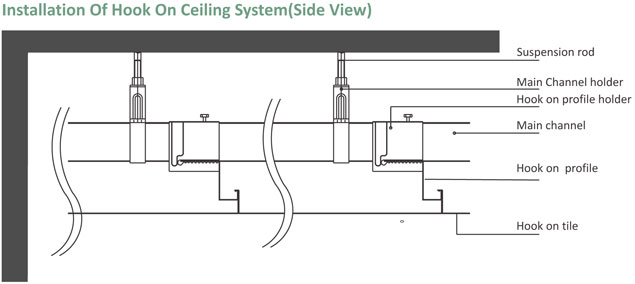

Providing and Fixing Citizen Hook-On False ceiling system comprising of Hook on Tile of width upto 600mm and length upto 3000mm, made up of Aluminium alloy 3105,0.6 - 1.2 (TCT) thick depending on panel size minimum 50 micron epoxy powder coated, hooked to 0.7mm thick GI hook on profile of size 25mm, fixed perpendicularly to 0.7mm thick GI main channel of size 38mm x 15mm by hook on profile holder. Main Channel is installed at 1.2mtr centre to centre by 6mm dia galvanized Suspension rod with the help of Main channel Holder. Notches are made on Wall Angle of 0.7mm thick in aluminium alloy, coil coated/ powder coated for proper engagement of tiles. Hook on tile can be plain/ perforated as per requirement of acoustics of the area Perforation can be 1.8mm/ 2.3 dia holes with back fleece at back.
1. Installing the sideline in the same height.
2. Installing main channel in appreciate space, the normal space is 1-1.2m to suspension rod by clip in profile holder.
3. Suspension rod should be installed according to main channel at a distance of 1.2m centre to centre.

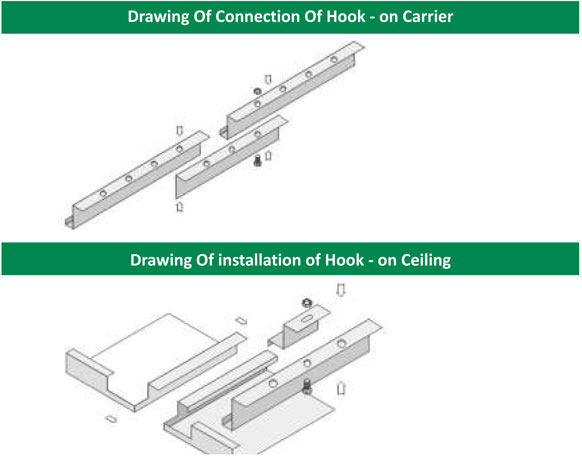

4. Binding the Hook on prifile with main channel with the help of Hook on Profile holder at space according to the width of hook on tile.
5. Laying down hook on tile to Hook on profile.
6. Wearing gloves when installing panel, if figure print or stain remain on the panel, please remove it with warm water and detergent, then dry it.
Testing | |
Frame & smoke spread Light Reflectance (White) Stability under humidity IAQ Friendly VOCs Fiber Content Moisture Resistance Life Cycle |
Class A (ASTM E84) LRI Yes Yes No No Excellent Excellent |
