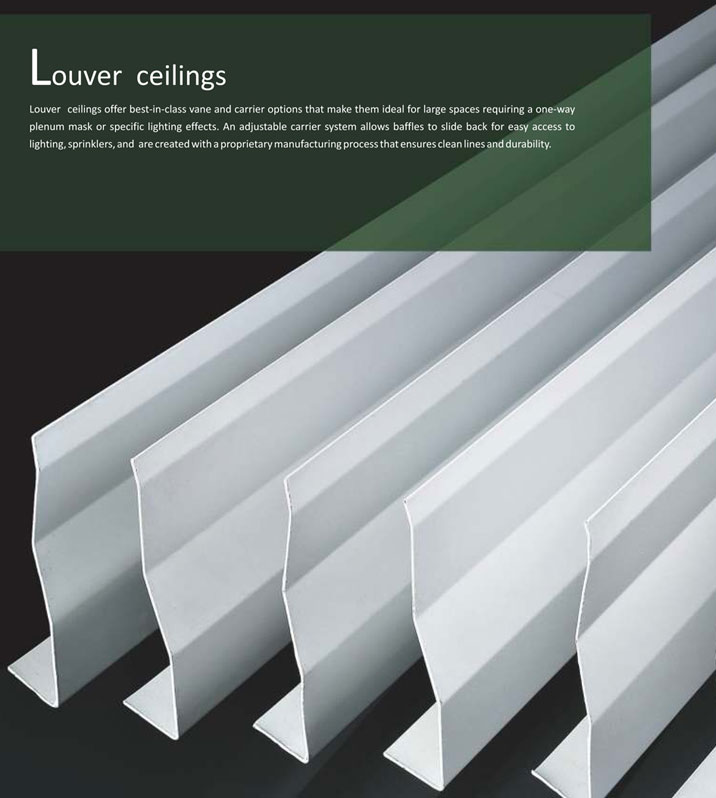

Louver Ceilings

Product Details

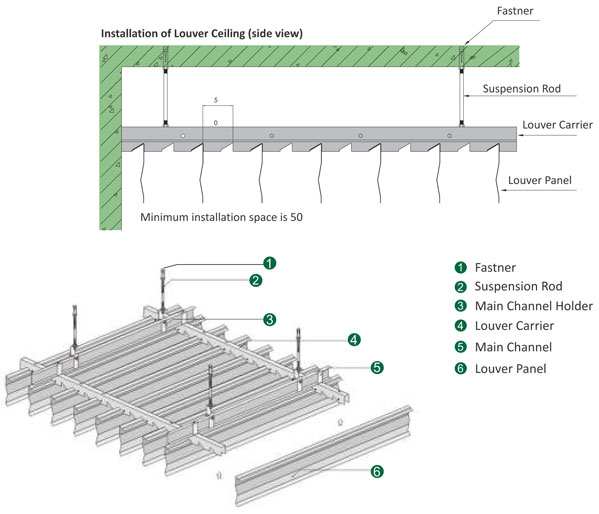

1 Installing the sideline in the same height
2. Installing main channel in appreciate space, the normal space is 1 – 1.2m to suspension rod by clip in profile holder.
3. Suspension rod should be installed according to main channel at a distance of 1.2m centre to centre.
4. Binding the Louver carrier with main channel with the help of carrier holder at space 1.2mtr to 1.5mtr.
5. Pressing the Louver panel to the prongs of Louver carrier perpendicular to the it.
6. Wearing gloves when installing panel , if figure print or stain remain on the panel , please remove it with warm water and detergent , then dry it.

Testings
Frame & smoke spread	Class A (ASTM E84)
Light Reflectance (White)	Lr1
Stability under humidity	Yes
IAQ Friendly	Yes
VOCs	No
Fiber Content	No
Moisture Resistance	Excellent
Life Cycle	Excellent
