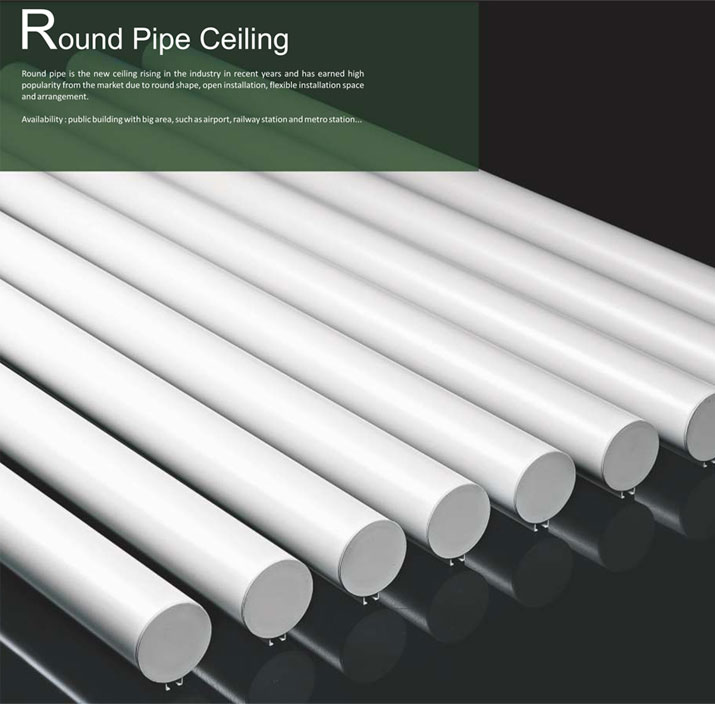

Round Pipe Ceiling

Product Details

Testings
Frame & smoke spread	Class A (ASTM E84)
Light Reflectance (White)	Lr1
Stability under humidity	Yes
IAQ Friendly	Yes
VOCs	No
Fiber Content	No
Moisture Resistance	Excellent
Life Cycle	Excellent

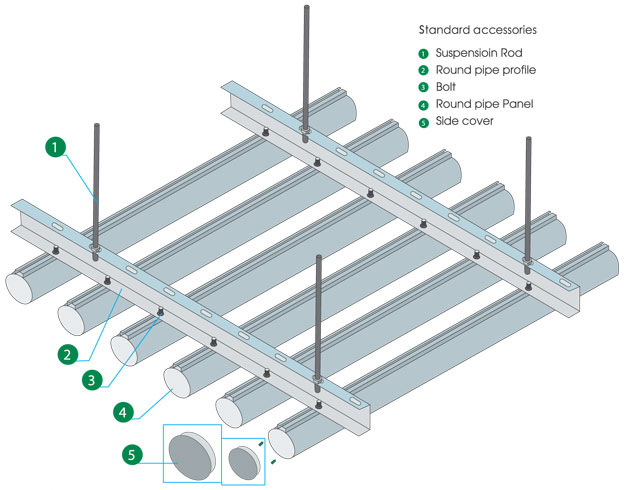

1. Installing the sideline in the same height

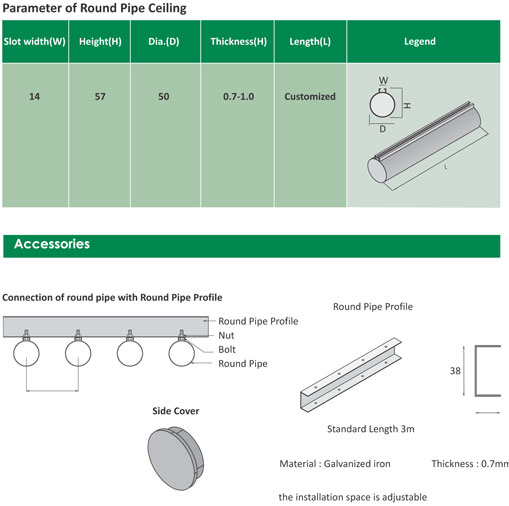

2. Installing Round pipe profile in appreciate space, the normal space is 1 – 1.2m to suspension rod by nut and bolt.
3. Suspension rod should be installed according to main channel at a distance of 1.2m centre to centre.
4. Binding the Round Pipe Profile with Round pipe panel with the help of hexagonal bolt .
5. Spacing of the Round Pipe can be customized as per requirement.
6. Wearing gloves when installing panel , if figure print or stain remain on the panel , please remove it with warm water and detergent , then dry it.
